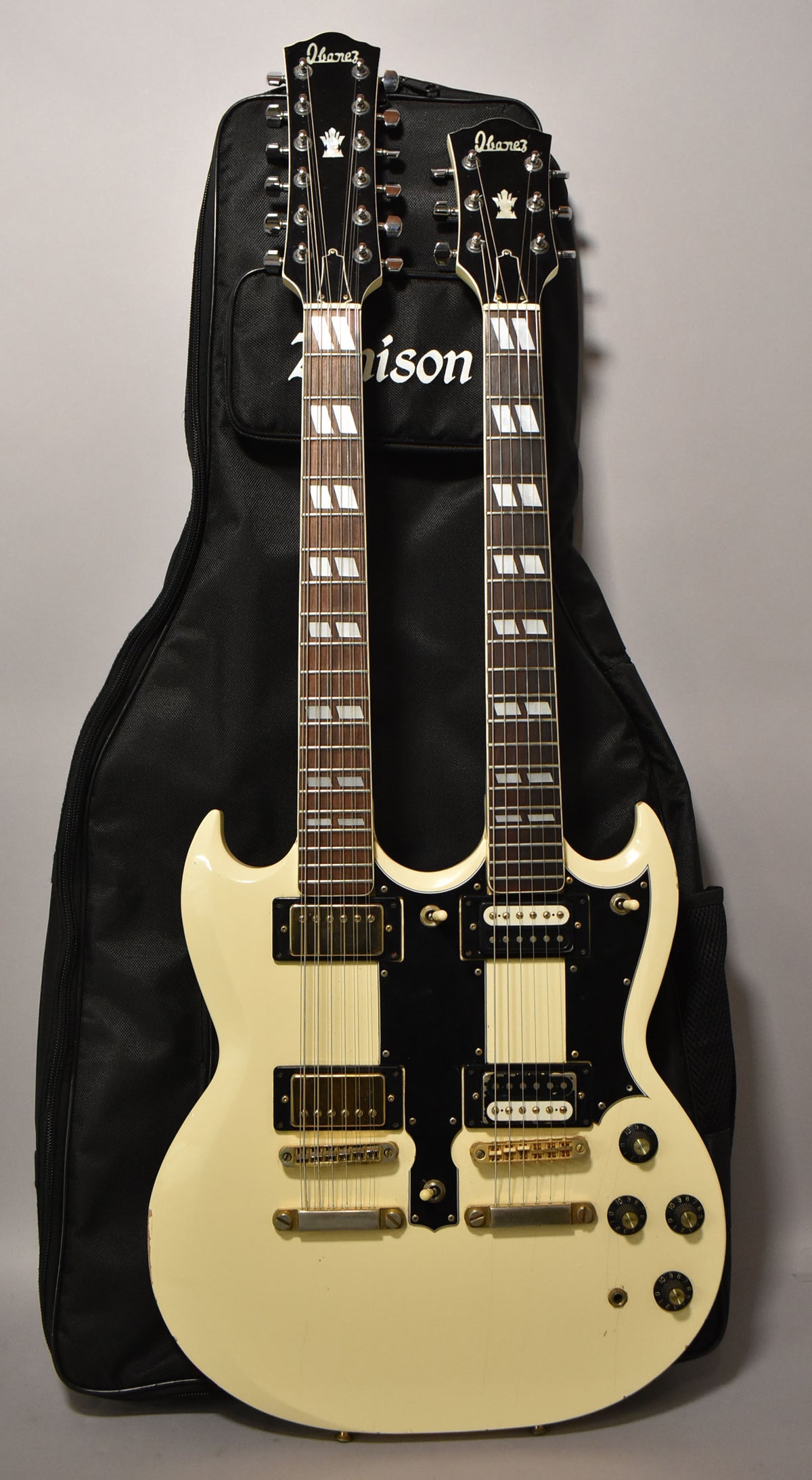

Full-length view of a cream double-neck electric guitar with a black pickguard, gold hardware, and a black gig bag behind it.
01 / 32Full-length view of a cream double-neck electric guitar with a black pickguard, gold hardware, and a black gig bag behind it.

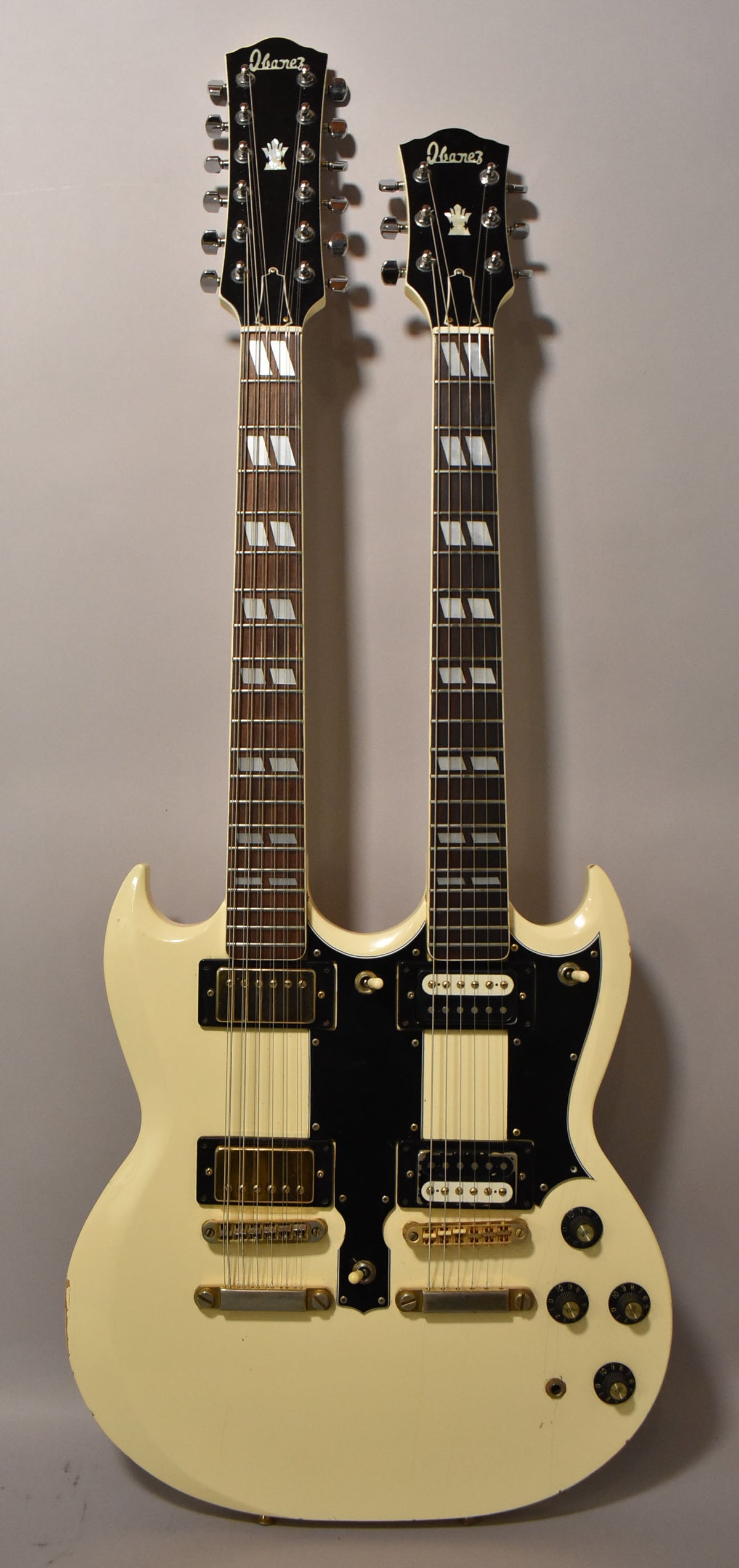

Full front view of a cream double-neck guitar with black pickguards, gold hardware, and block inlays, showing some finish wear.
02 / 32Full front view of a cream double-neck guitar with black pickguards, gold hardware, and block inlays, showing some finish wear.

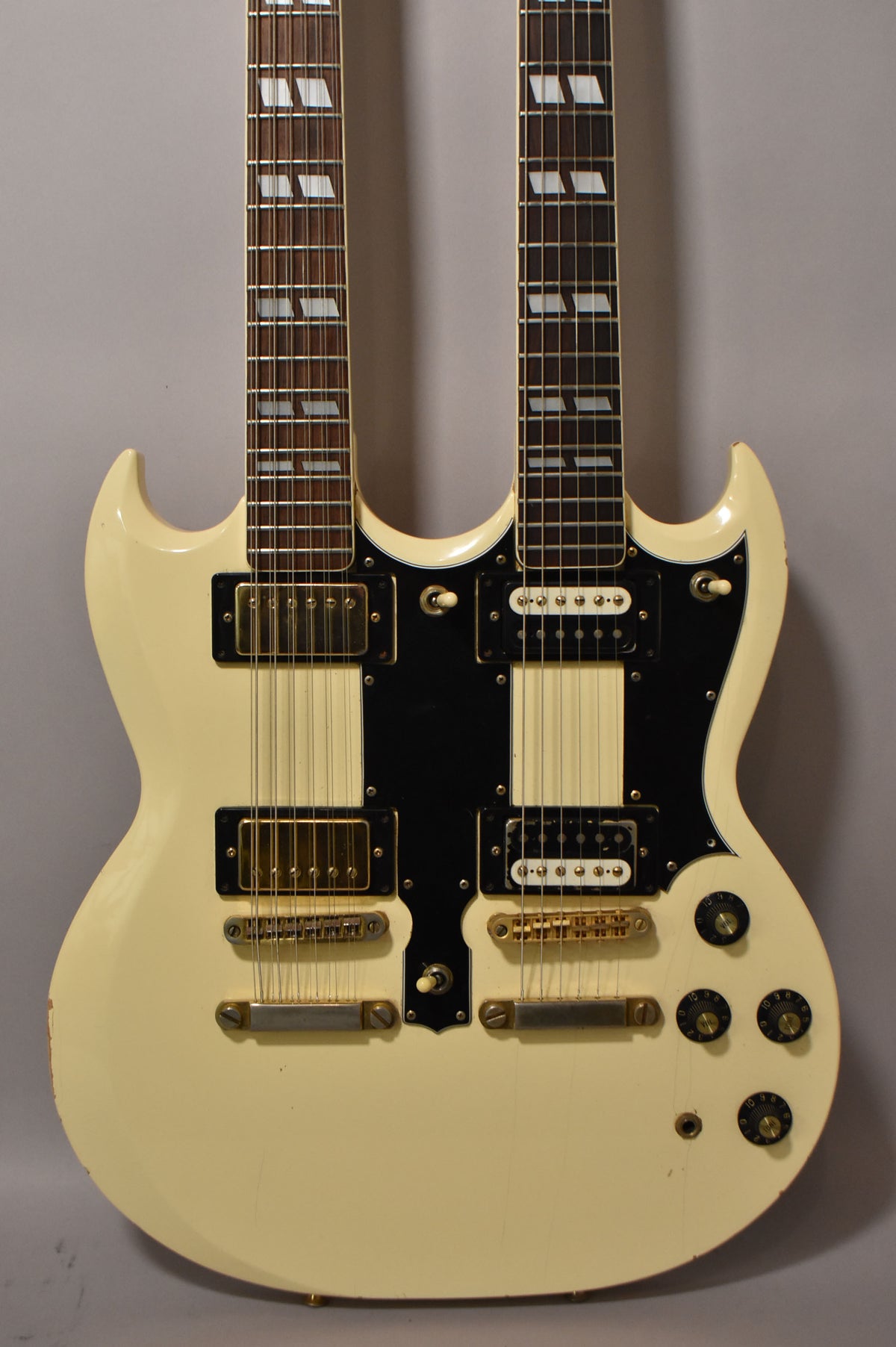

Full-frame view of the cream double-neck guitar, showing both necks, black pickguard, gold hardware, and four control knobs.
03 / 32Full-frame view of the cream double-neck guitar, showing both necks, black pickguard, gold hardware, and four control knobs.

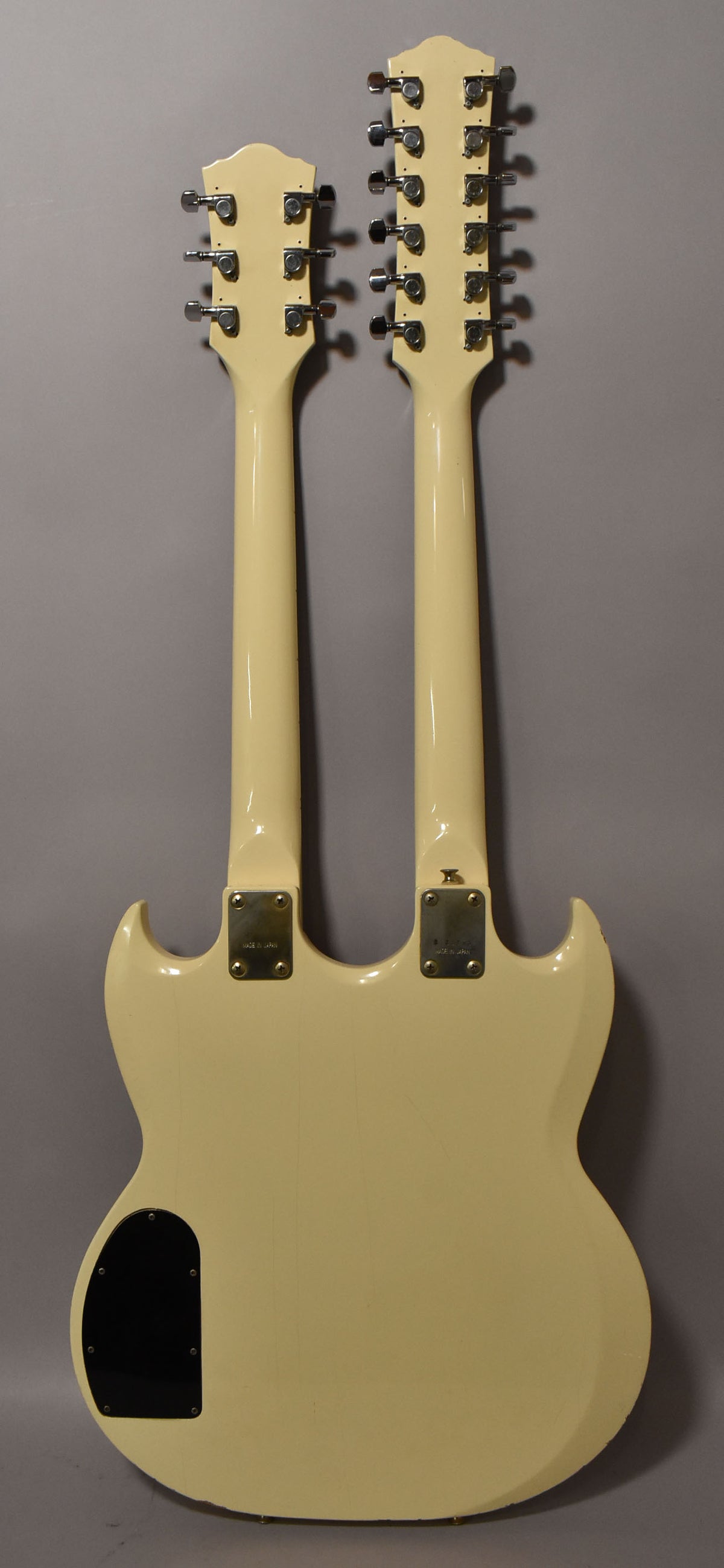

The back of a cream double-neck guitar, showing a 6-string and 12-string neck, with a black control cavity cover.
04 / 32The back of a cream double-neck guitar, showing a 6-string and 12-string neck, with a black control cavity cover.

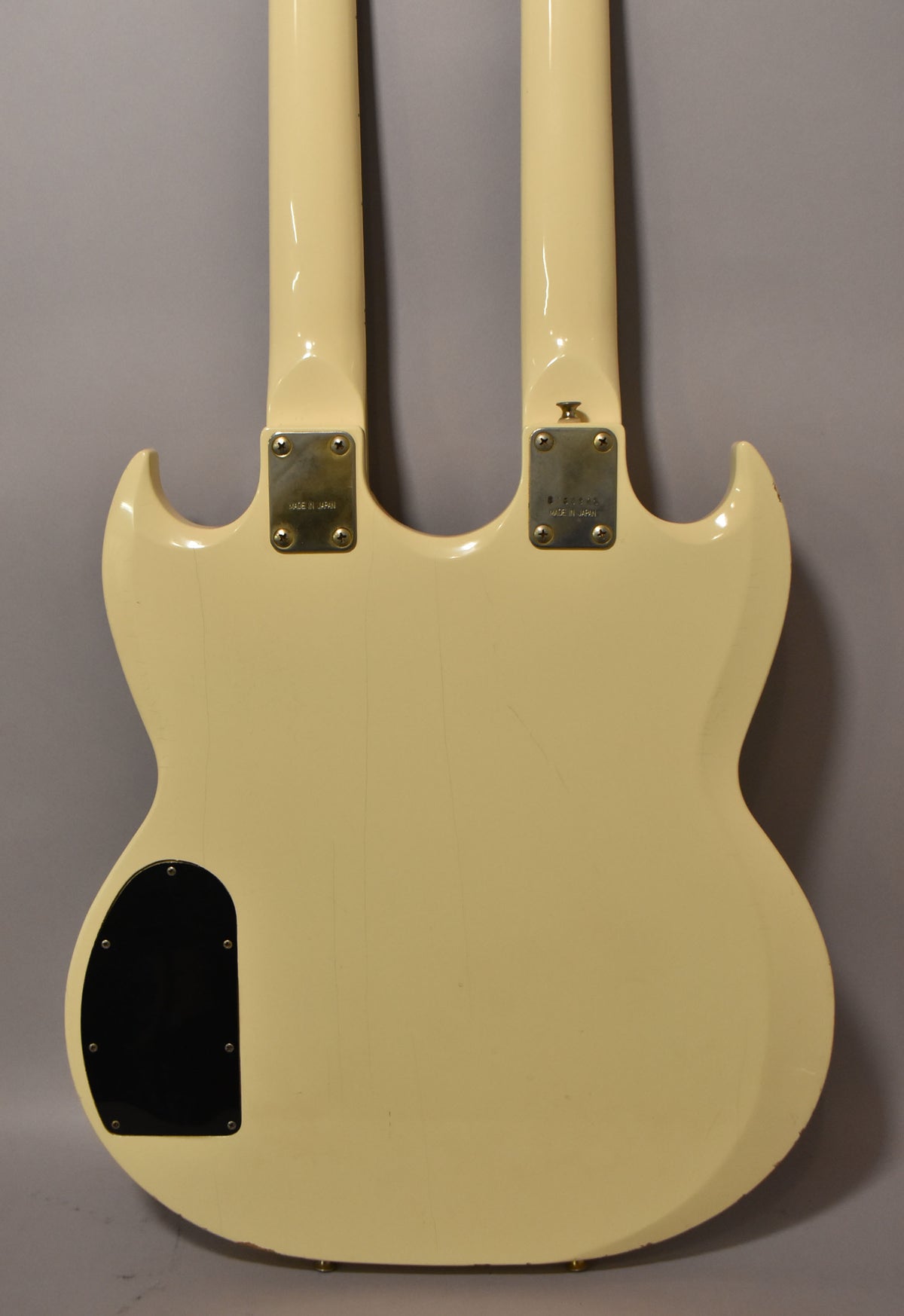

Rear view of a cream double-neck guitar, showing two neck plates, a black control cavity cover, and light finish checking.
05 / 32Rear view of a cream double-neck guitar, showing two neck plates, a black control cavity cover, and light finish checking.

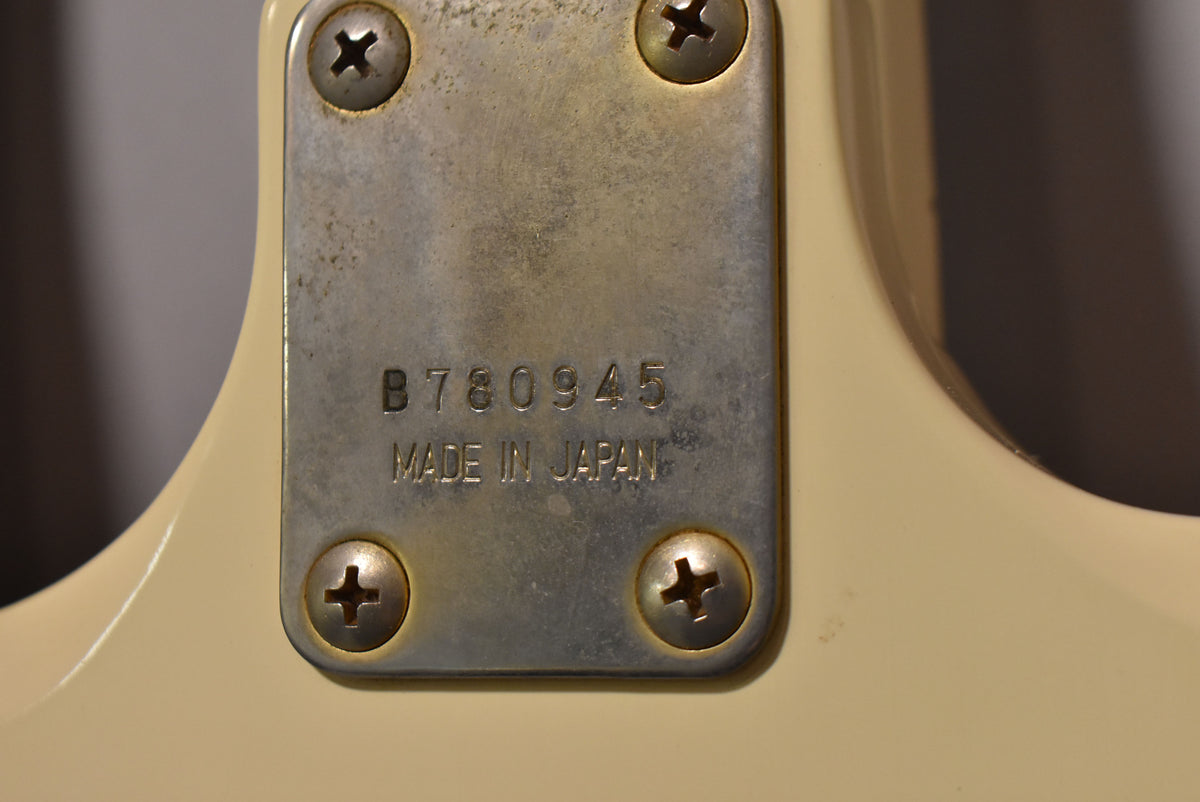

Close-up of the guitar's neck plate, showing a worn, rectangular metal plate with four Phillips head screws and stamped text.
06 / 32Close-up of the guitar's neck plate, showing a worn, rectangular metal plate with four Phillips head screws and stamped text.

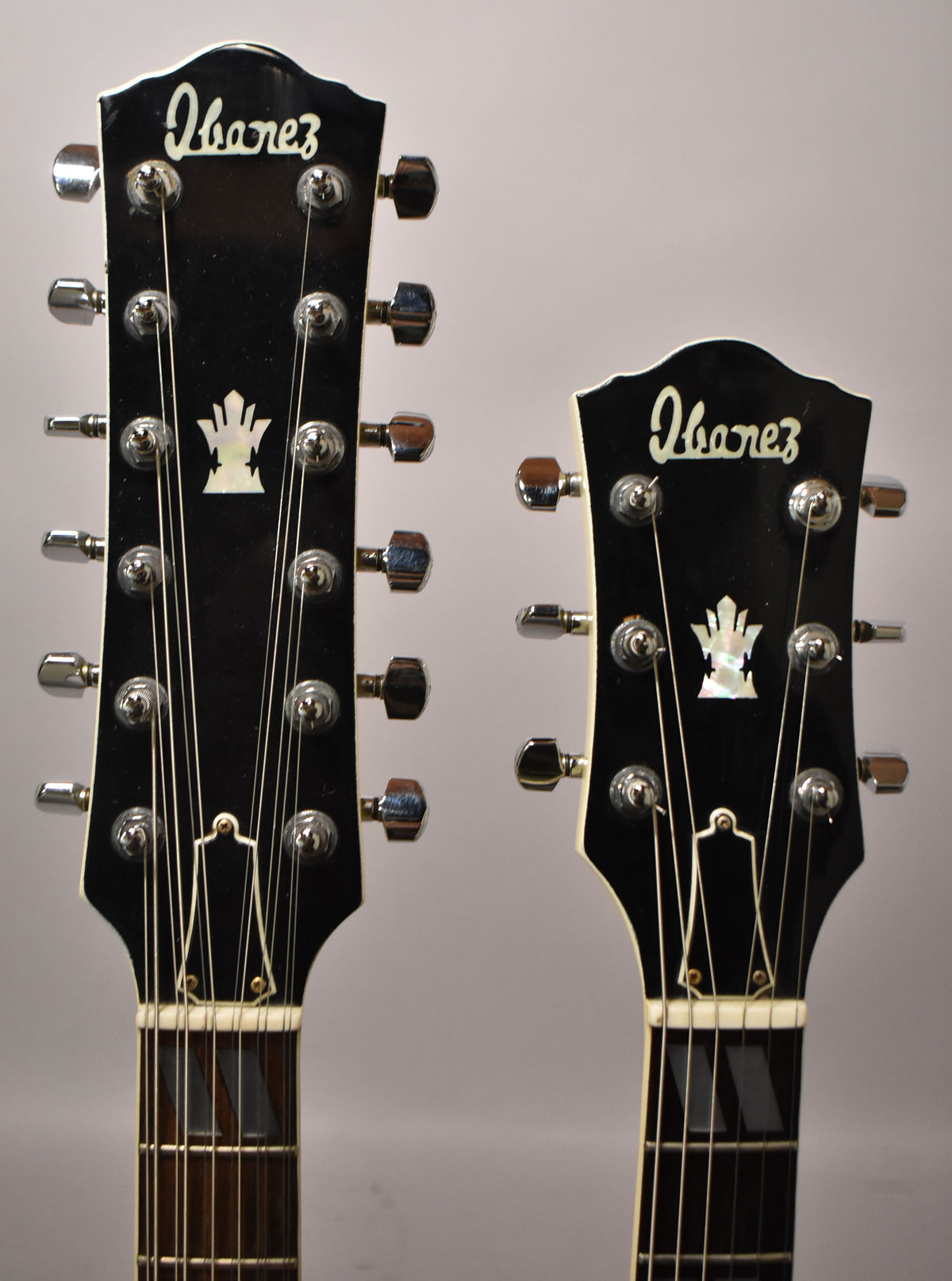

Close-up of two black headstocks with white binding, mother-of-pearl inlays, and chrome tuners, showing 12-string and 6-string necks.
07 / 32Close-up of two black headstocks with white binding, mother-of-pearl inlays, and chrome tuners, showing 12-string and 6-string necks.

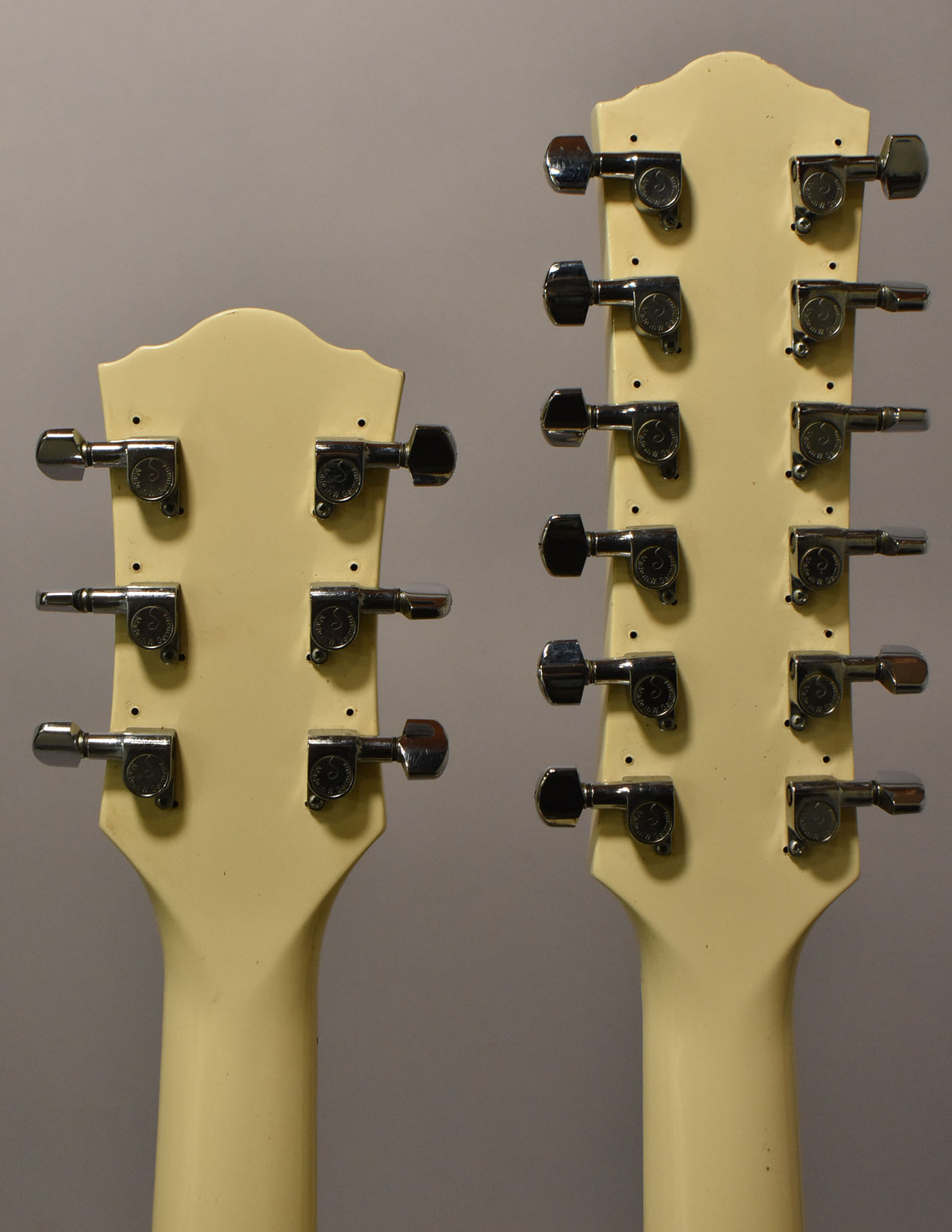

Rear view of two cream-colored headstocks with chrome tuners; the left has 6 tuners, the right has 12.
08 / 32Rear view of two cream-colored headstocks with chrome tuners; the left has 6 tuners, the right has 12.

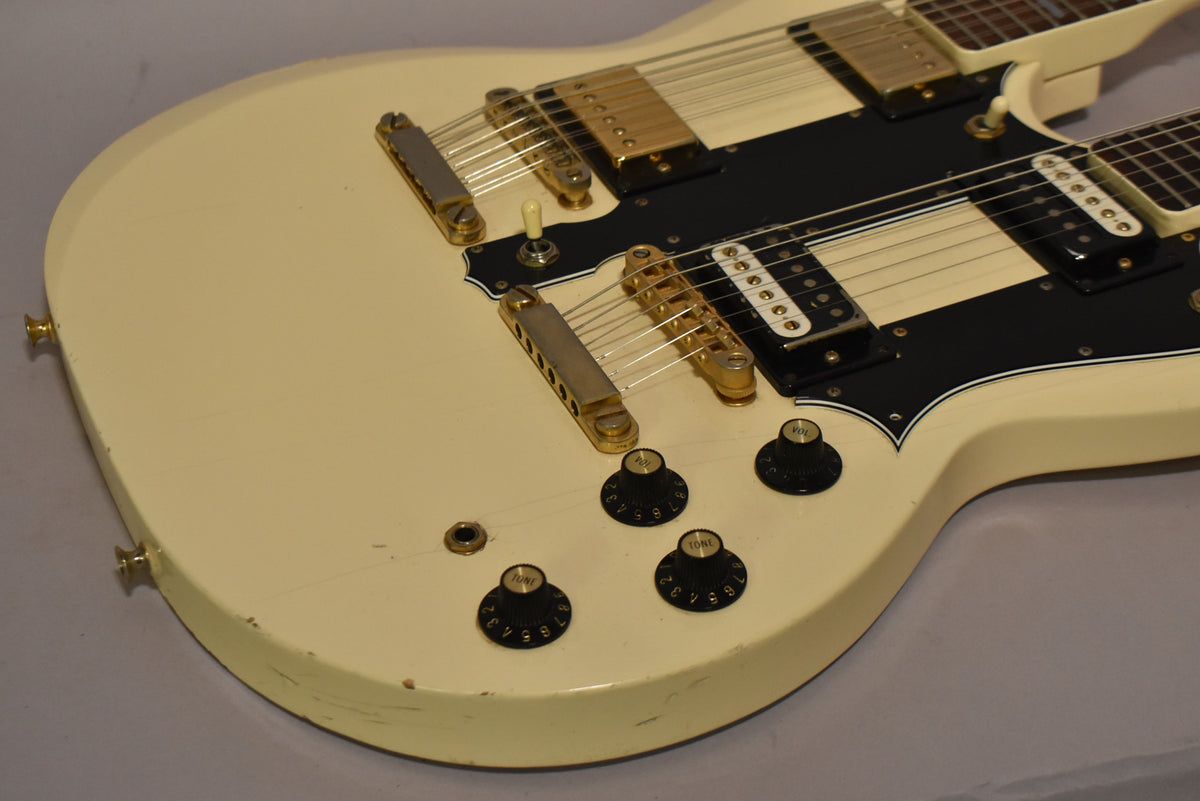

Close-up of the cream-colored double-neck guitar body, showing gold hardware, black pickguard, four black control knobs, and some wear.
09 / 32Close-up of the cream-colored double-neck guitar body, showing gold hardware, black pickguard, four black control knobs, and some wear.

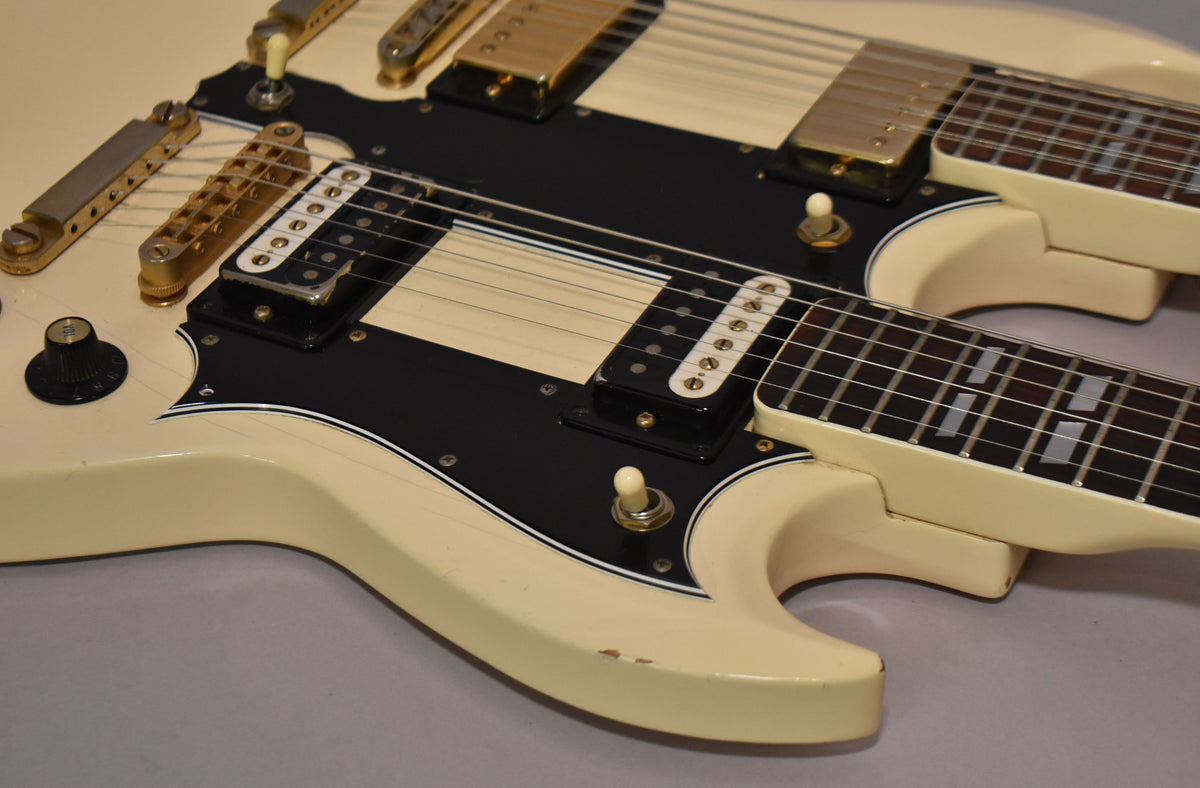

Close-up of the cream double-neck guitar body and black pickguard, showing gold hardware, white humbucker pickups, and minor chips.
10 / 32Close-up of the cream double-neck guitar body and black pickguard, showing gold hardware, white humbucker pickups, and minor chips.

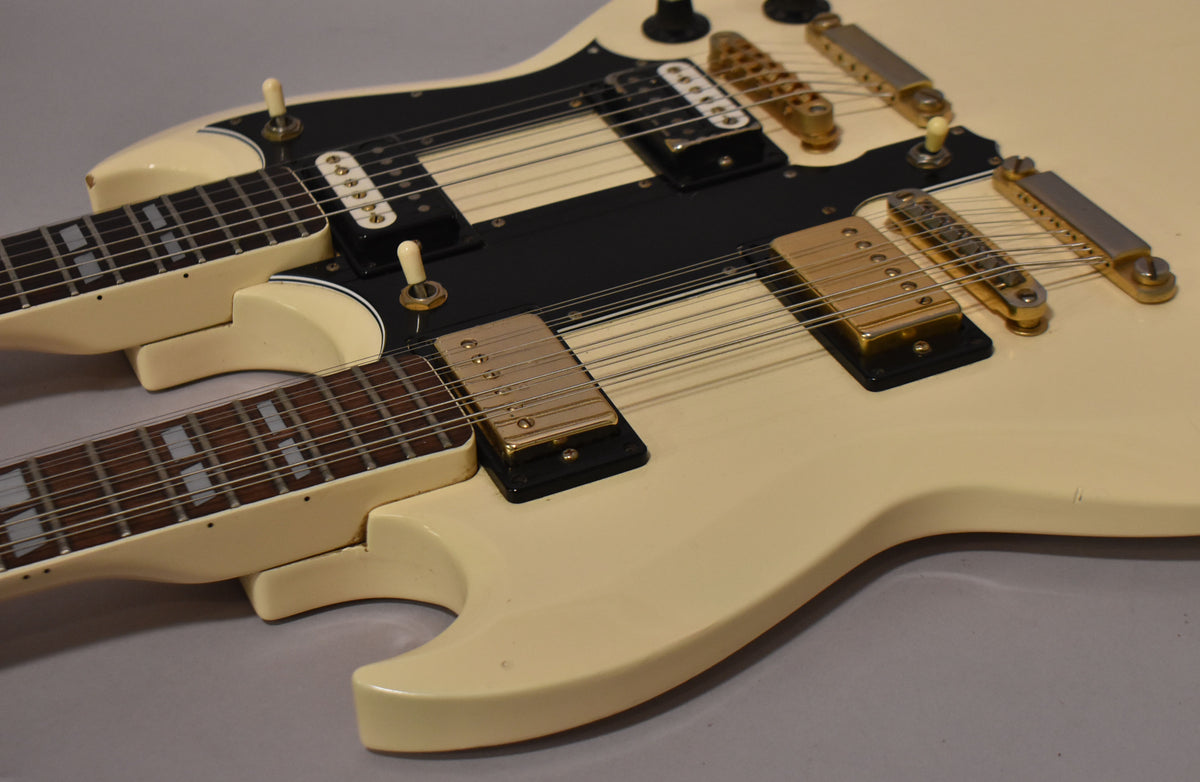

The white double-neck guitar's body is angled from the lower right, revealing two black pickguards, gold hardware, and block inlays.
11 / 32The white double-neck guitar's body is angled from the lower right, revealing two black pickguards, gold hardware, and block inlays.

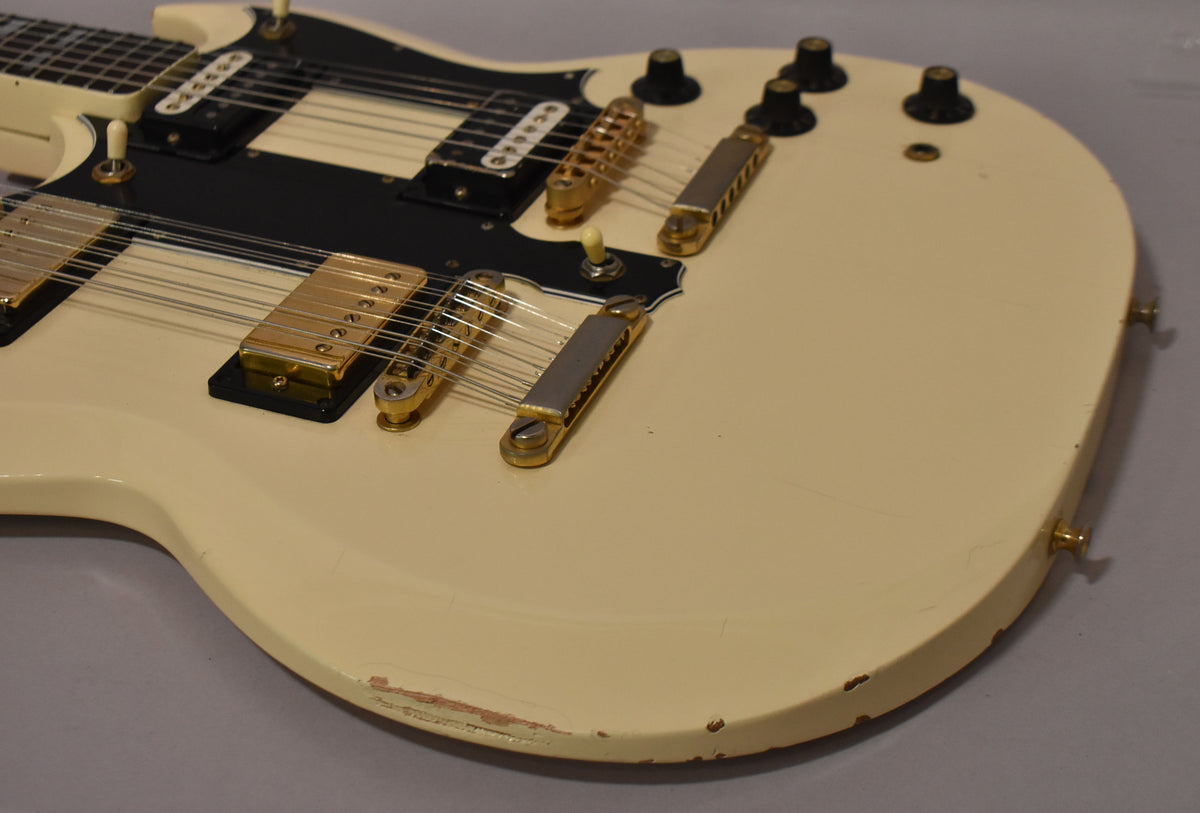

Close-up of the cream double-neck guitar body, showing gold hardware, black pickguard, and significant paint chips along the lower edge.
12 / 32Close-up of the cream double-neck guitar body, showing gold hardware, black pickguard, and significant paint chips along the lower edge.

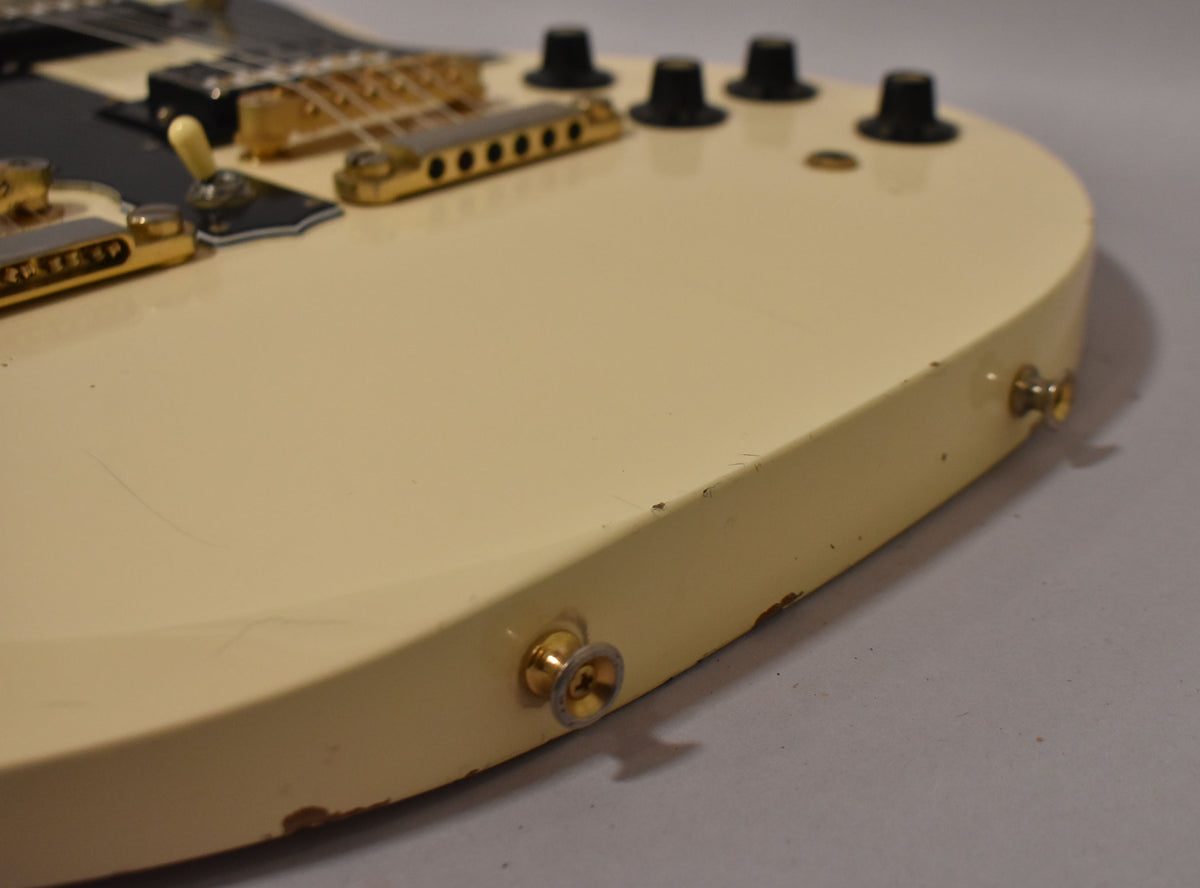

Close-up of the guitar's lower bout, showing the aged white finish, gold hardware, black control knobs, and visible chips and scratches.
13 / 32Close-up of the guitar's lower bout, showing the aged white finish, gold hardware, black control knobs, and visible chips and scratches.

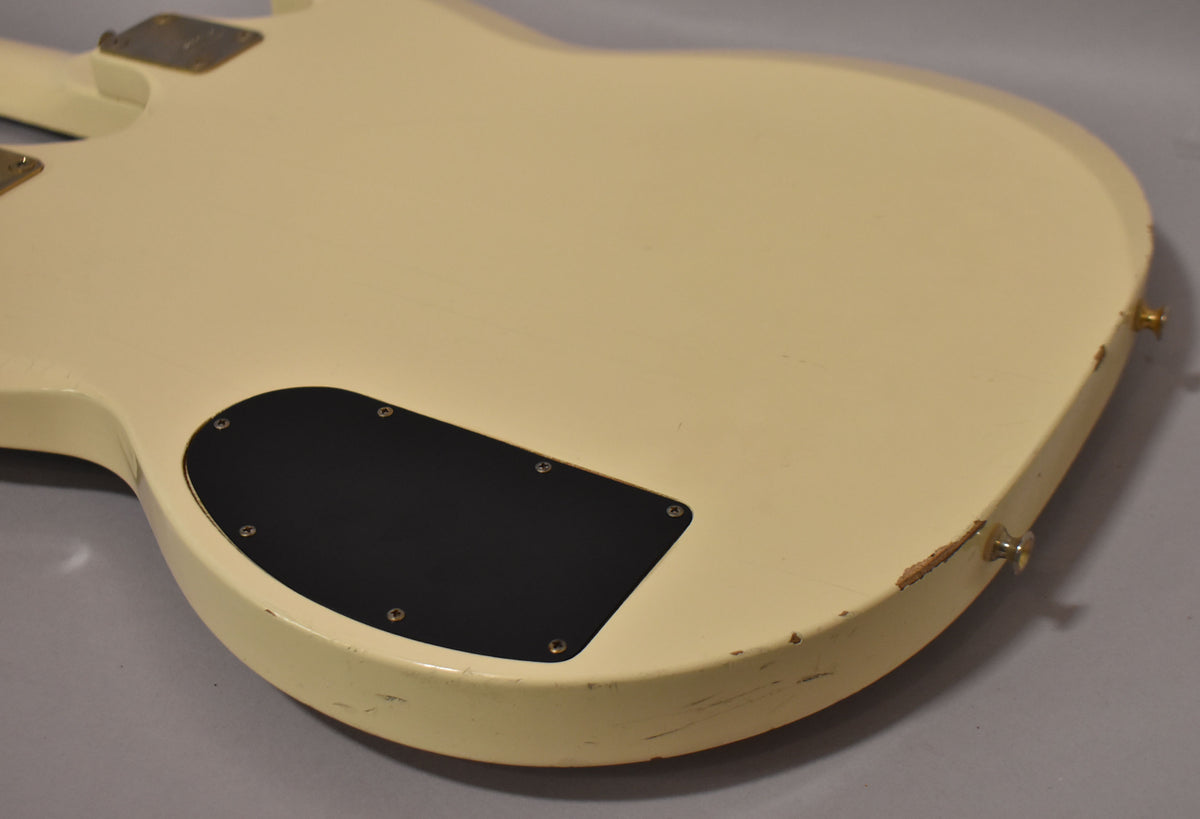

The back of a white double-neck guitar, angled down, showing a black control cavity cover and significant paint chips on the lower edge.
14 / 32The back of a white double-neck guitar, angled down, showing a black control cavity cover and significant paint chips on the lower edge.

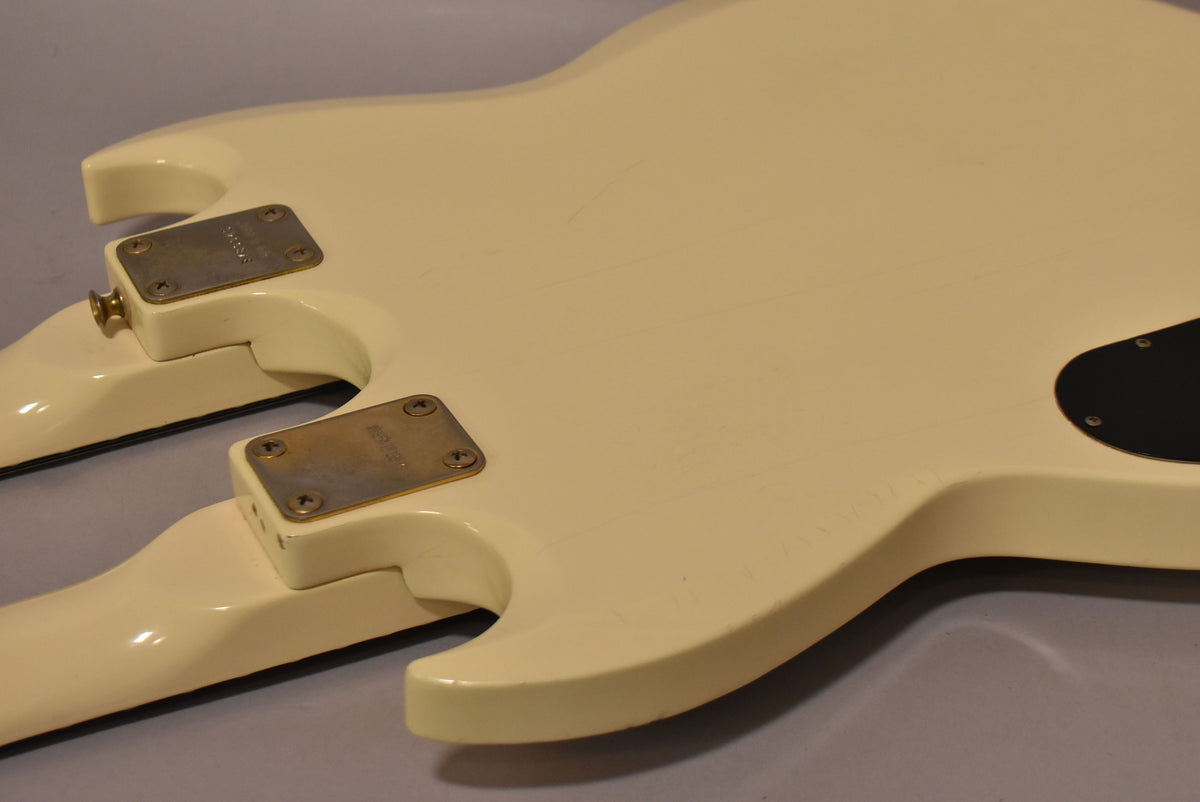

The back of the white double-neck guitar shows two neck plates, a black control cavity cover, and light scratches and wear on the finish.
15 / 32The back of the white double-neck guitar shows two neck plates, a black control cavity cover, and light scratches and wear on the finish.

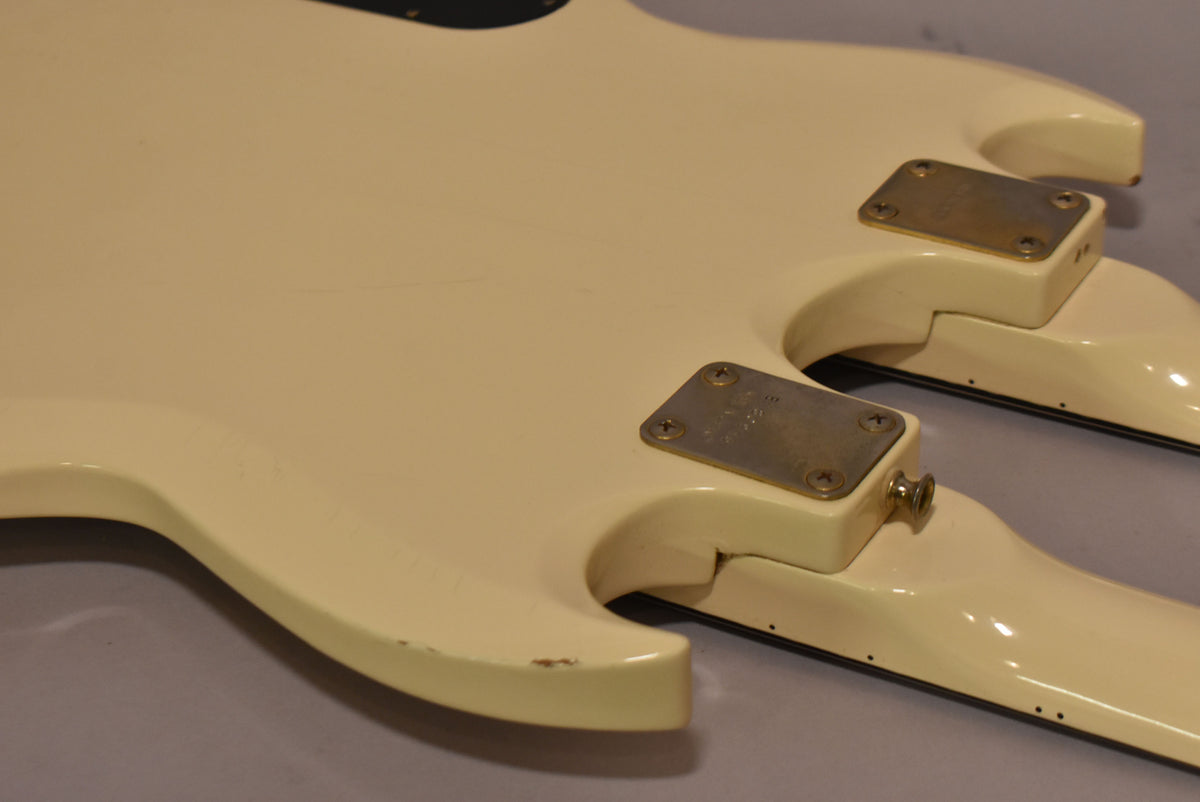

Close-up of the double-neck guitar's white body from the back, showing two brass neck plates and some finish wear on the lower horn.
16 / 32Close-up of the double-neck guitar's white body from the back, showing two brass neck plates and some finish wear on the lower horn.

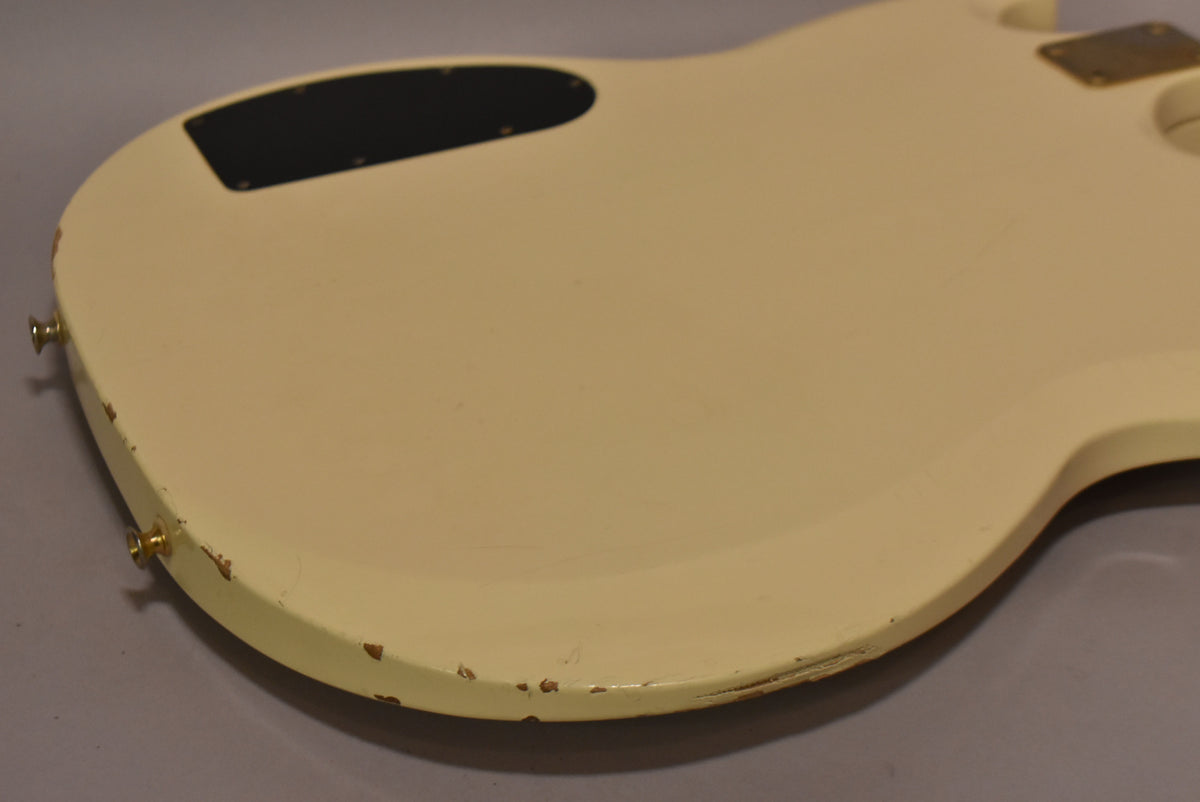

The back of the off-white double-neck guitar body, showing a black control cavity cover and significant paint chipping along the lower edge.
17 / 32The back of the off-white double-neck guitar body, showing a black control cavity cover and significant paint chipping along the lower edge.

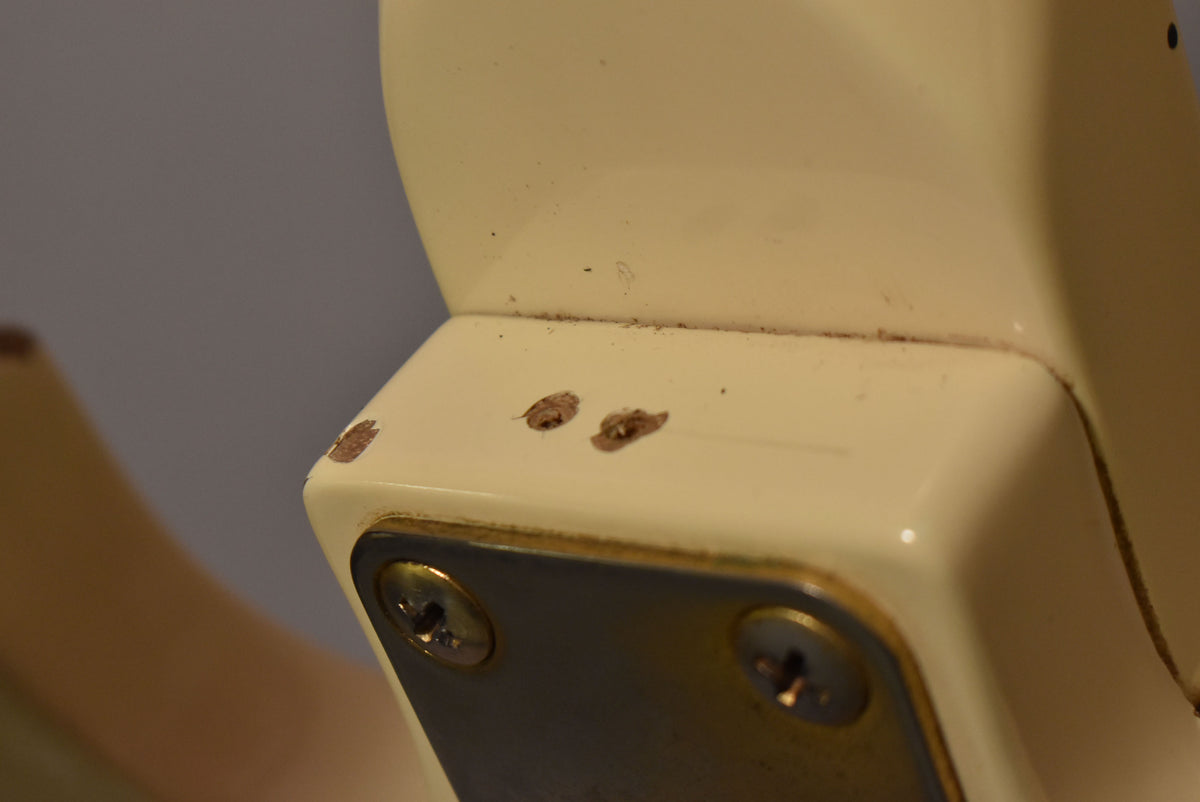

Close-up of the guitar's cream body, showing three large chips in the finish revealing the wood beneath, near a metal neck plate.
18 / 32Close-up of the guitar's cream body, showing three large chips in the finish revealing the wood beneath, near a metal neck plate.

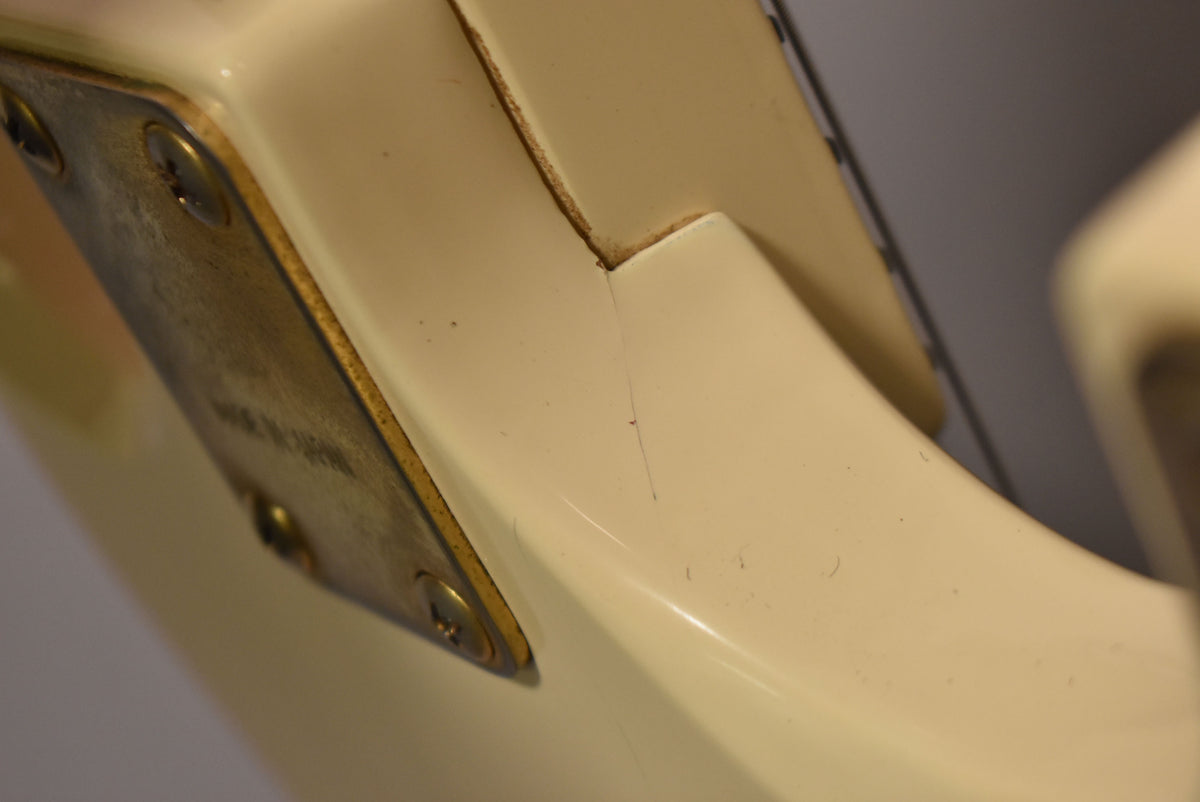

Close-up of the guitar's white body, showing a tarnished gold neck plate with three screws and a thin crack in the finish near the neck joint.
19 / 32Close-up of the guitar's white body, showing a tarnished gold neck plate with three screws and a thin crack in the finish near the neck joint.

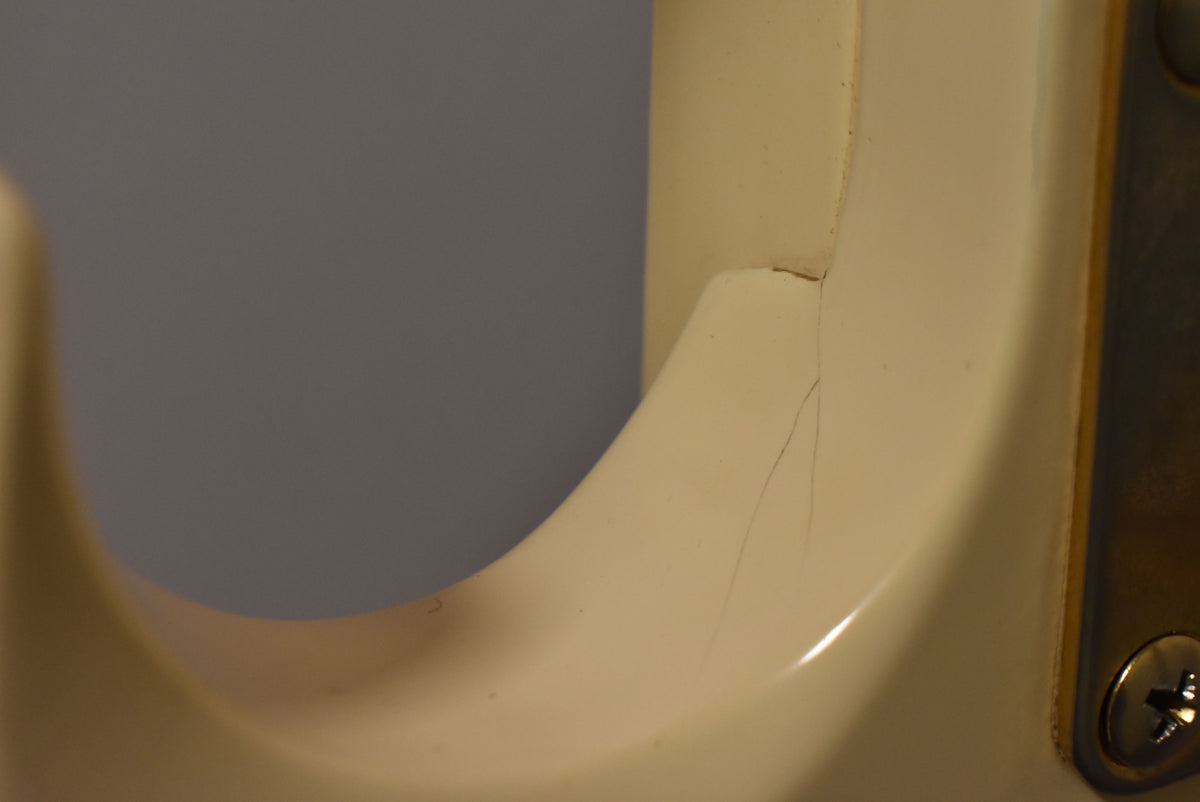

Close-up of the creamy white body, showing finish checking and a crack near the neck joint and a metal plate with a screw.
20 / 32Close-up of the creamy white body, showing finish checking and a crack near the neck joint and a metal plate with a screw.

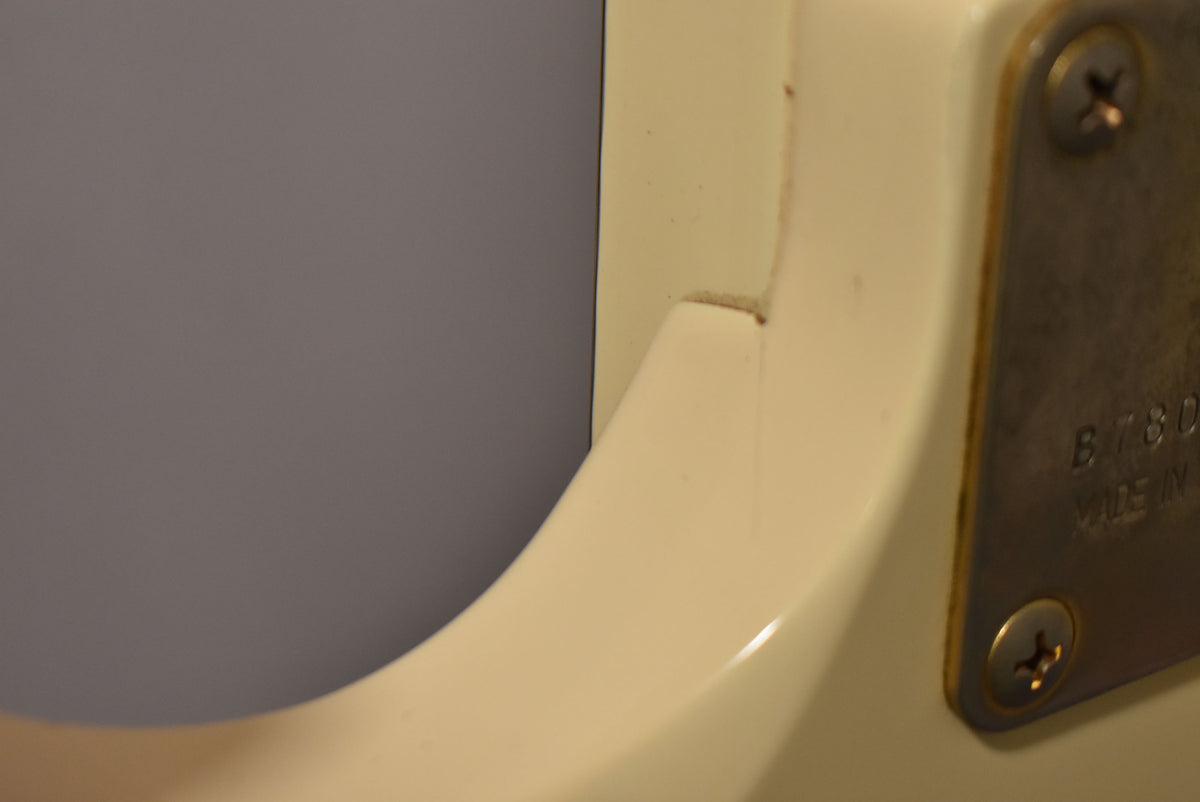

Close-up of the white guitar body's neck joint, showing a small crack in the finish and a metal neck plate with two visible screws.
21 / 32Close-up of the white guitar body's neck joint, showing a small crack in the finish and a metal neck plate with two visible screws.

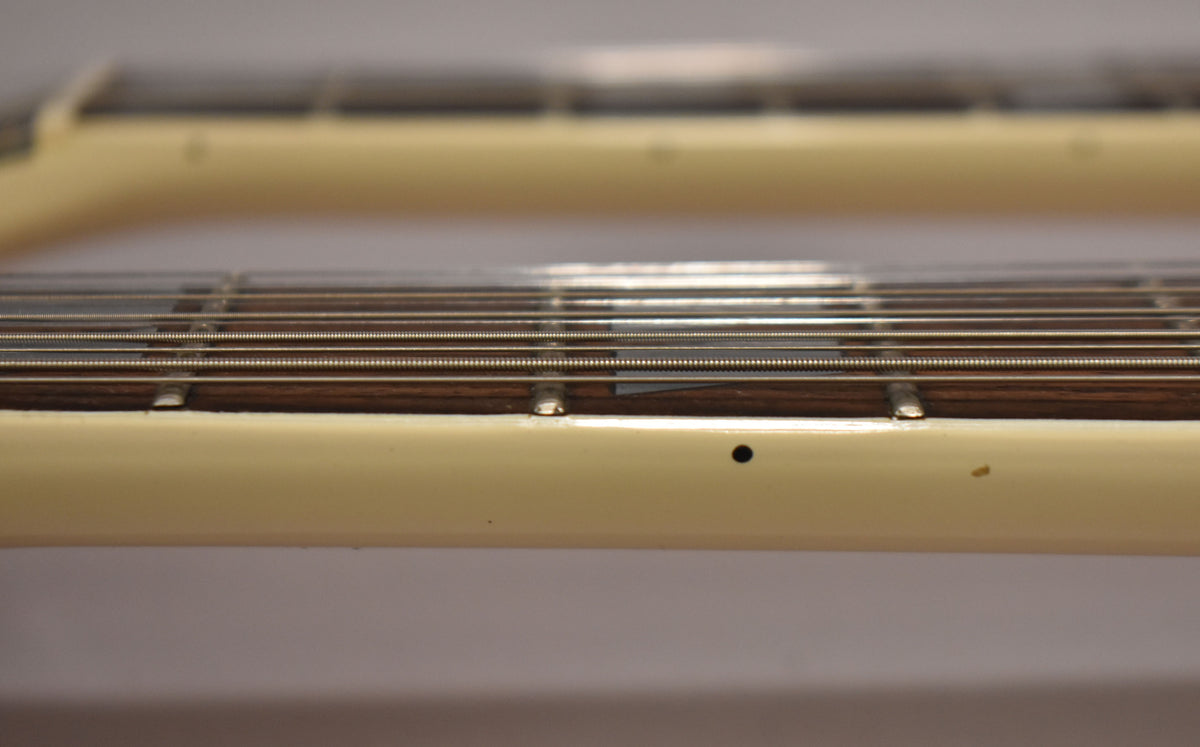

Close-up of the lower neck and fretboard, showing the white binding with a black side dot and a small chip near the fret.
22 / 32Close-up of the lower neck and fretboard, showing the white binding with a black side dot and a small chip near the fret.

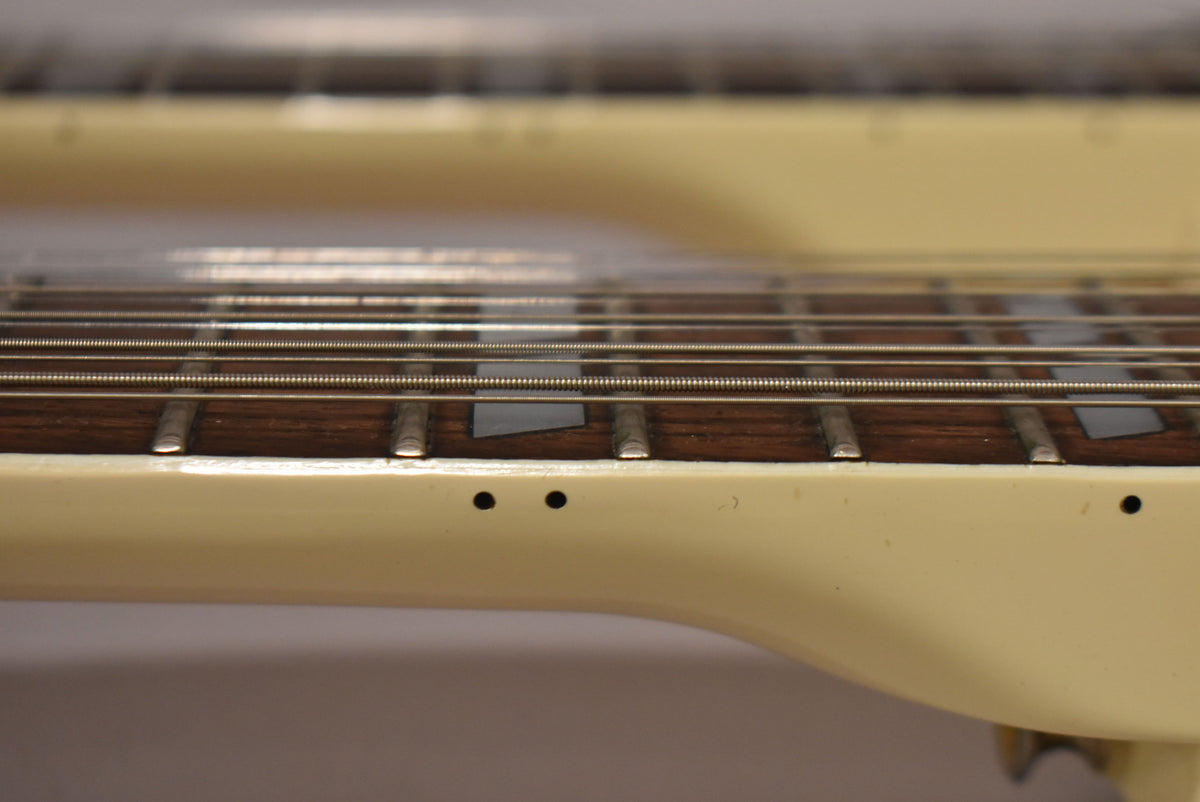

Close-up of the lower neck and fretboard of the 6-string neck, showing dark wood, trapezoid inlays, and two small holes on the side.
23 / 32Close-up of the lower neck and fretboard of the 6-string neck, showing dark wood, trapezoid inlays, and two small holes on the side.

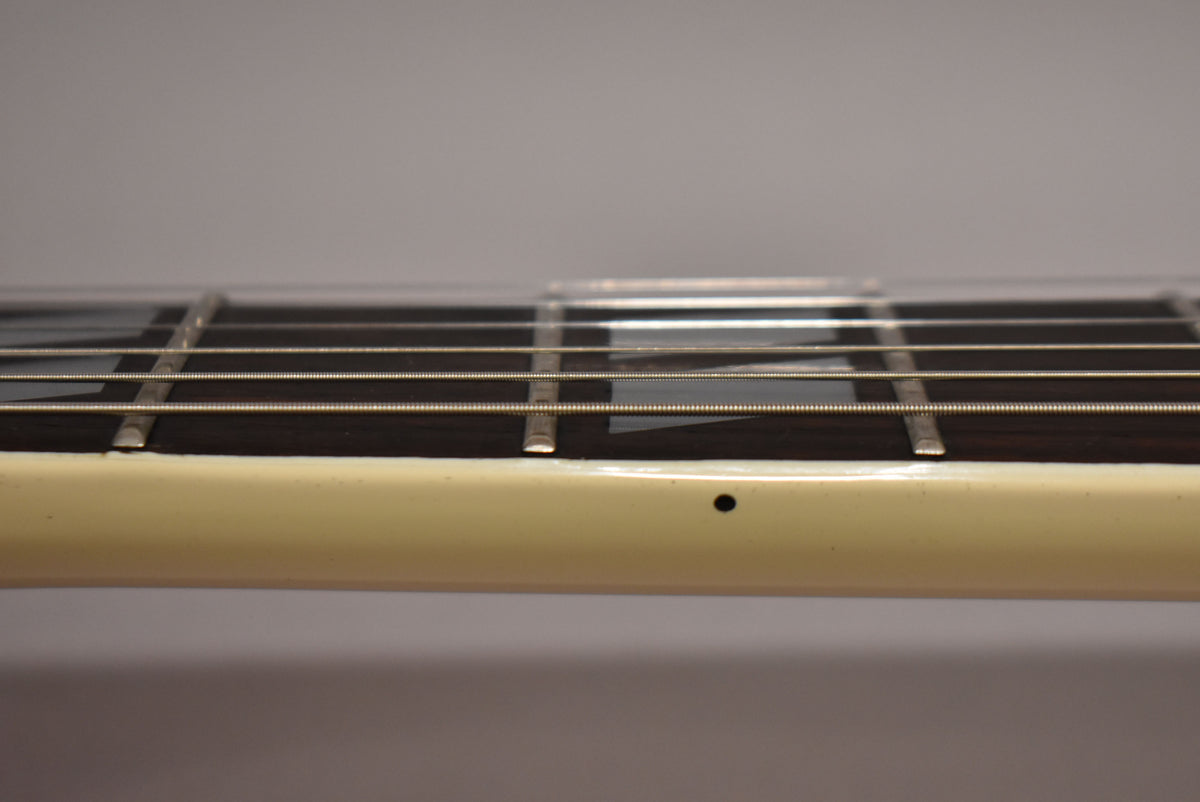

Close-up of the guitar's dark fretboard with trapezoid inlays, showing frets and strings, and a small black dot on the cream binding.
24 / 32Close-up of the guitar's dark fretboard with trapezoid inlays, showing frets and strings, and a small black dot on the cream binding.

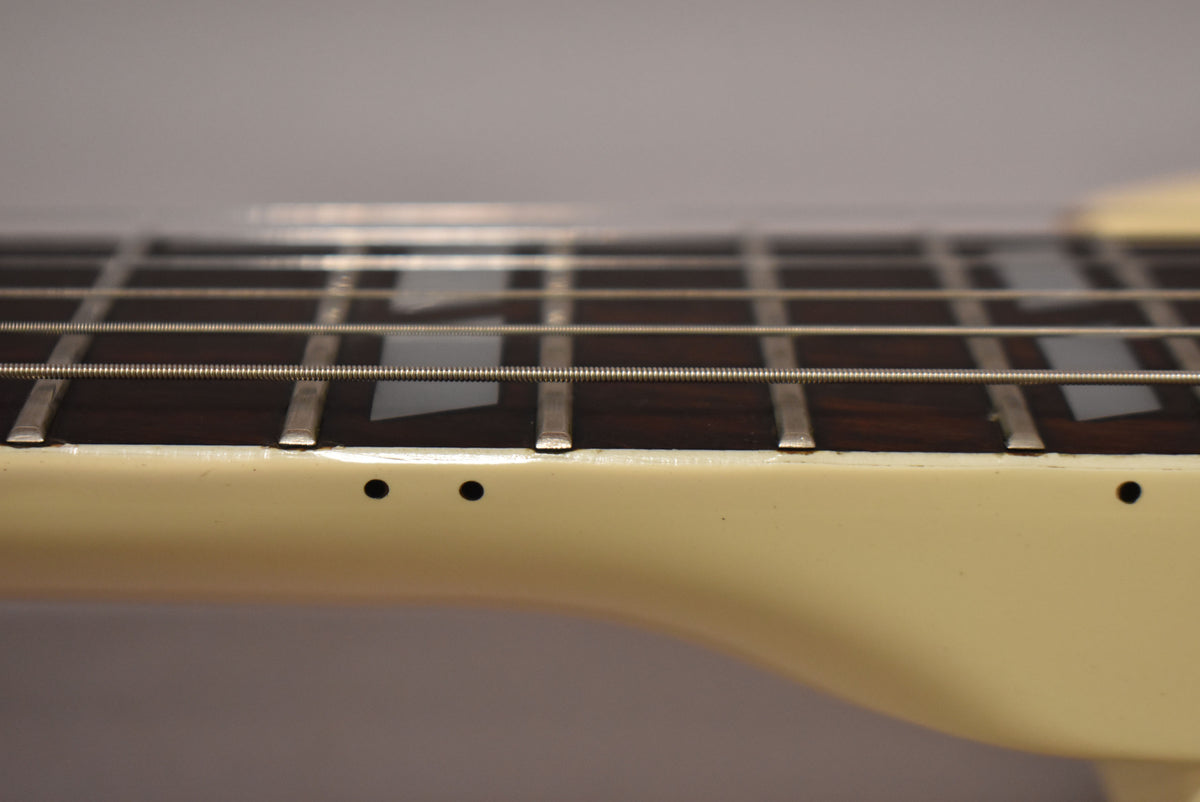

Close-up of the guitar's white neck binding and dark fretboard with block inlays, showing side dots and some fret wear.
25 / 32Close-up of the guitar's white neck binding and dark fretboard with block inlays, showing side dots and some fret wear.

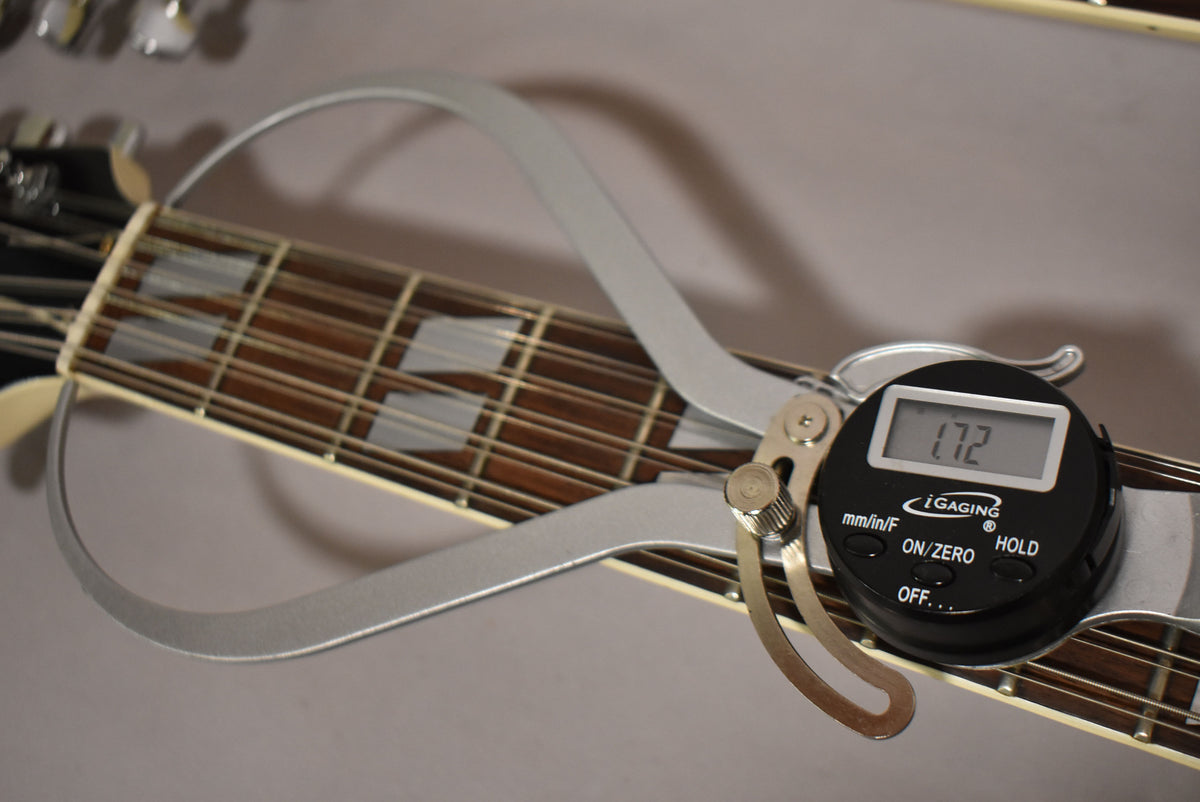

A digital caliper measures the nut width of the 12-string neck, showing 1.72, with trapezoid inlays visible on the dark fretboard.
26 / 32A digital caliper measures the nut width of the 12-string neck, showing 1.72, with trapezoid inlays visible on the dark fretboard.

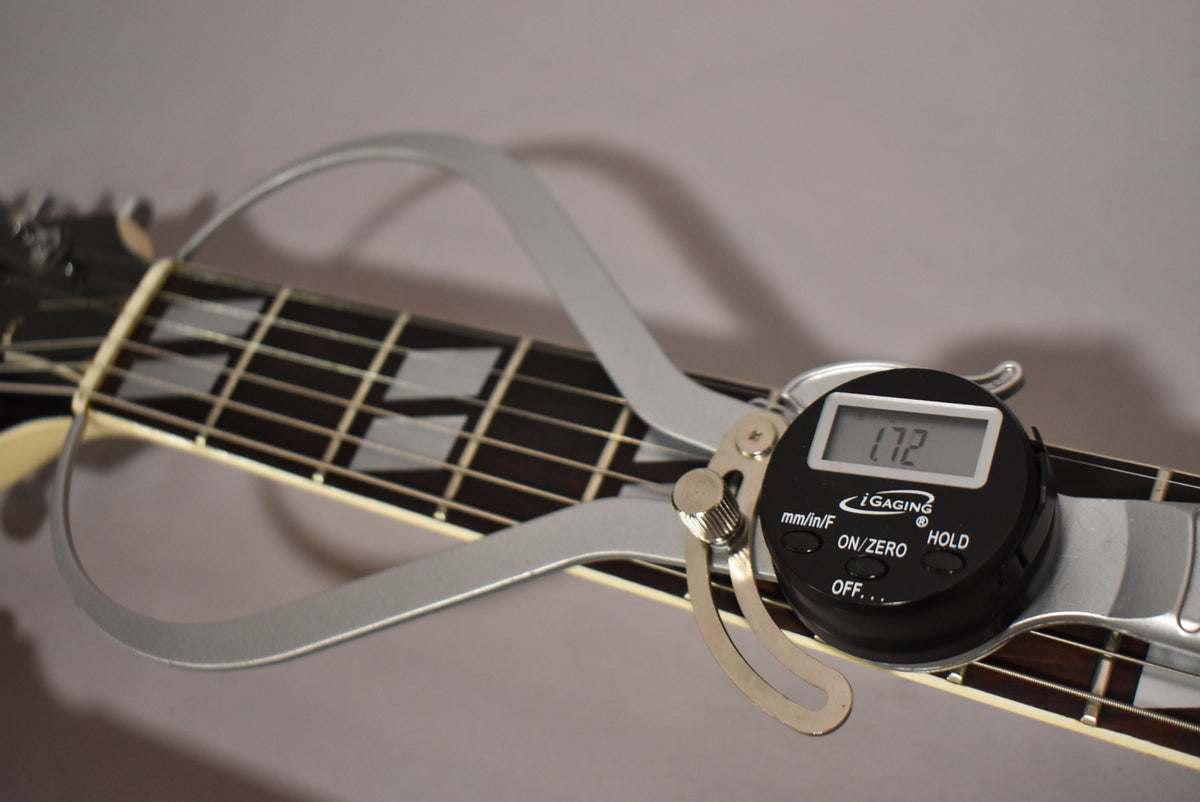

A digital caliper measures the string height at the 12th fret of the guitar's dark fretboard with trapezoid inlays.
27 / 32A digital caliper measures the string height at the 12th fret of the guitar's dark fretboard with trapezoid inlays.

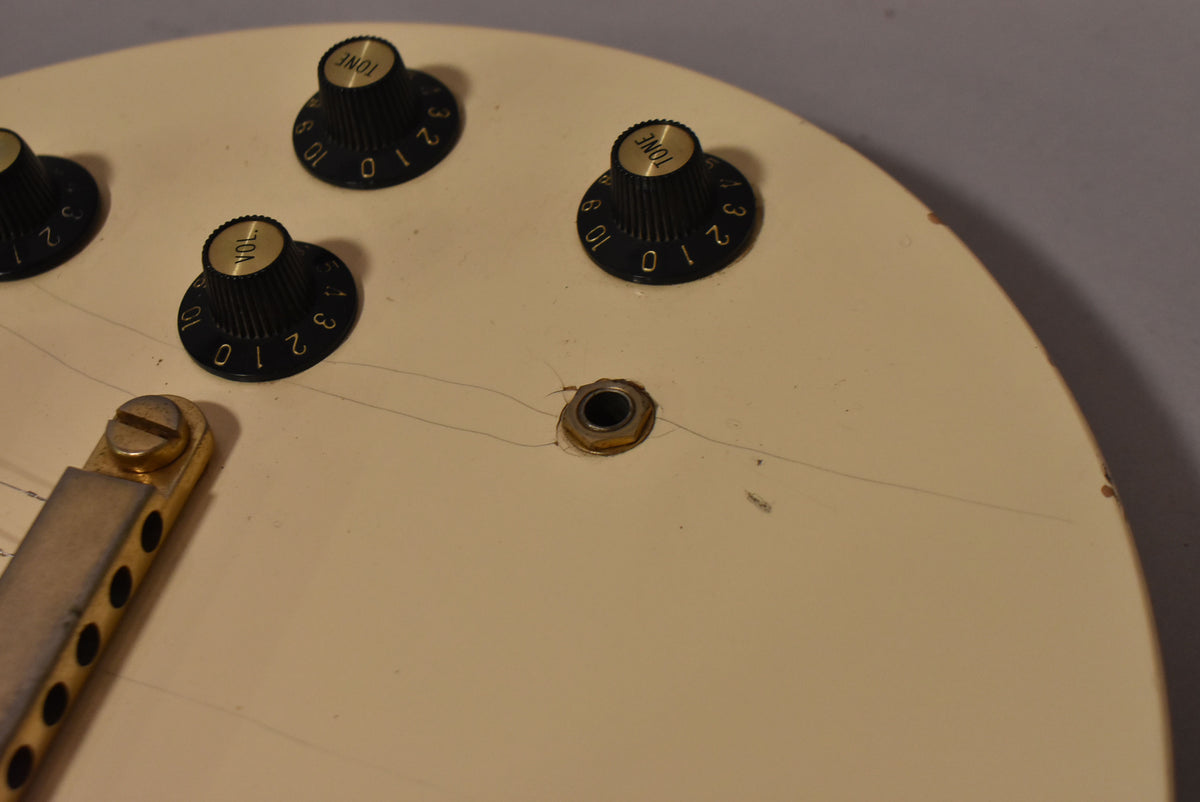

Close-up of the guitar's cream body, showing four black numbered knobs, a gold-rimmed output jack with cracks, and a gold tailpiece.
28 / 32Close-up of the guitar's cream body, showing four black numbered knobs, a gold-rimmed output jack with cracks, and a gold tailpiece.

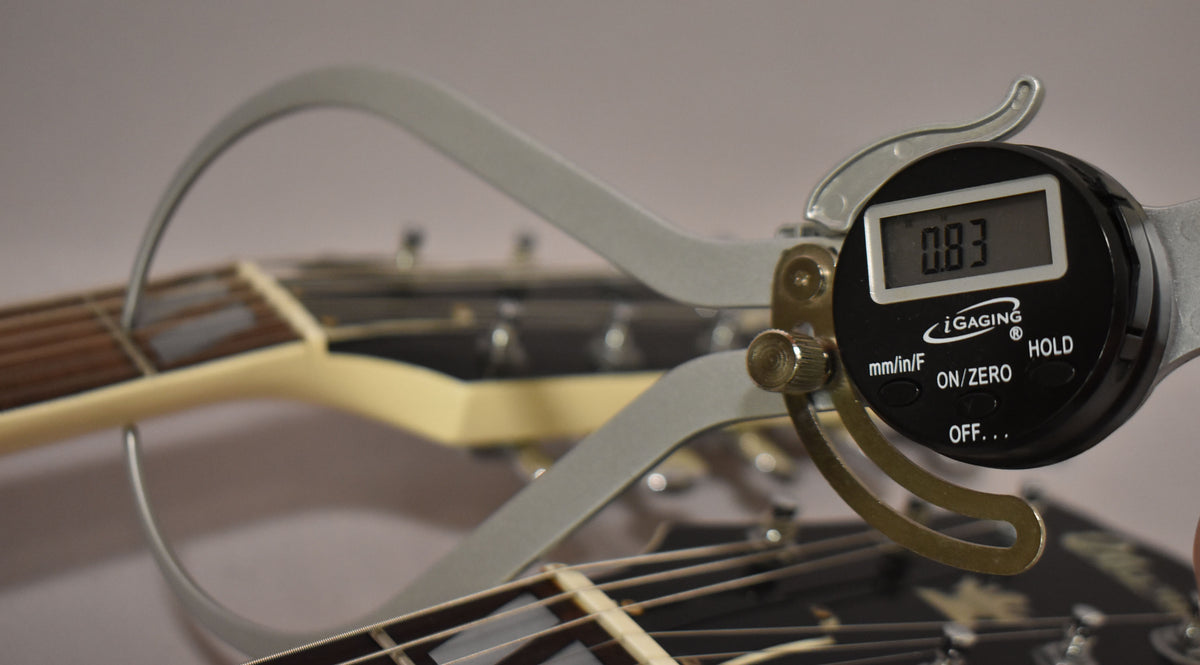

A digital caliper measures the string height on the lower neck of the white double-neck guitar, showing 0.83mm.
29 / 32A digital caliper measures the string height on the lower neck of the white double-neck guitar, showing 0.83mm.

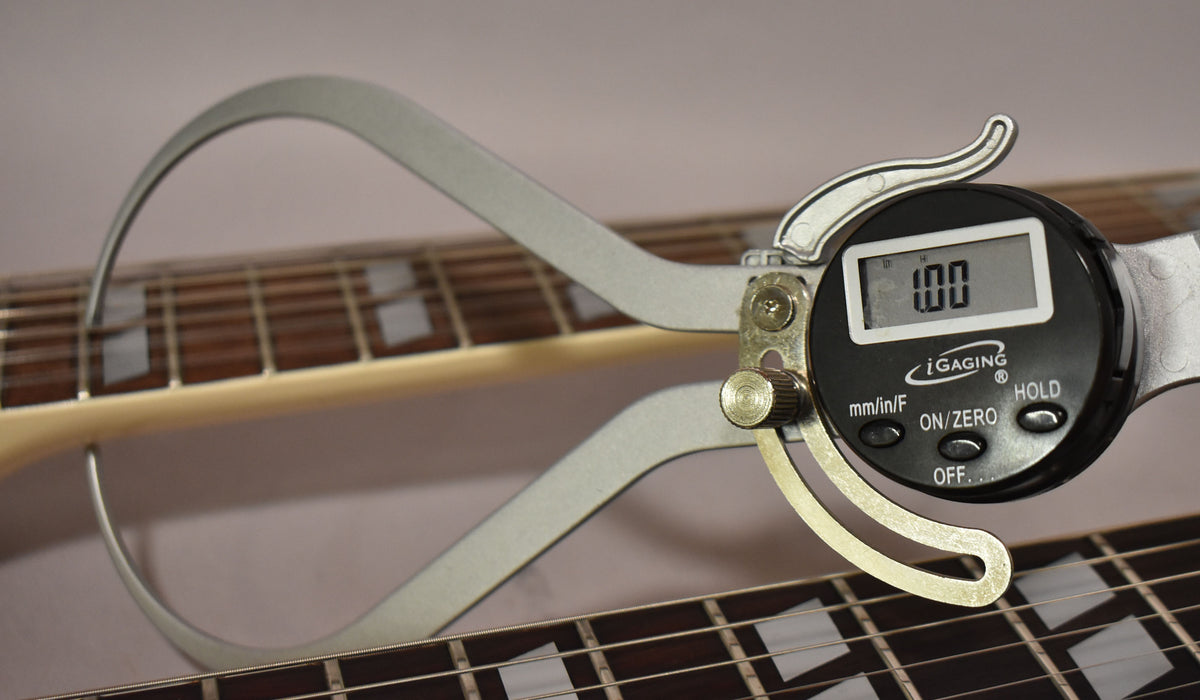

A digital caliper measures the neck thickness of the upper guitar neck, showing "1.00" on its display, with the lower neck visible below.
30 / 32A digital caliper measures the neck thickness of the upper guitar neck, showing "1.00" on its display, with the lower neck visible below.

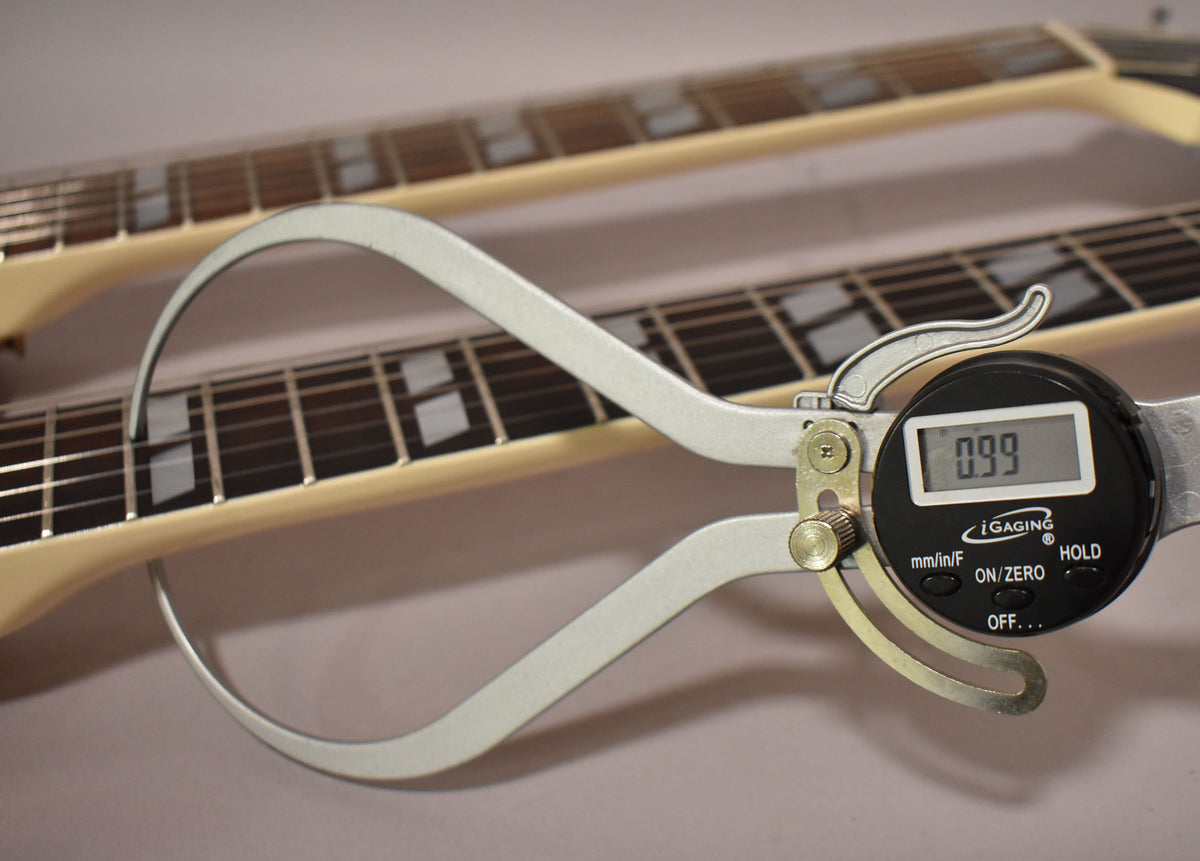

A digital caliper measures the fret height at 0.99mm on the lower neck, showing block inlays on a dark fretboard.
31 / 32A digital caliper measures the fret height at 0.99mm on the lower neck, showing block inlays on a dark fretboard.

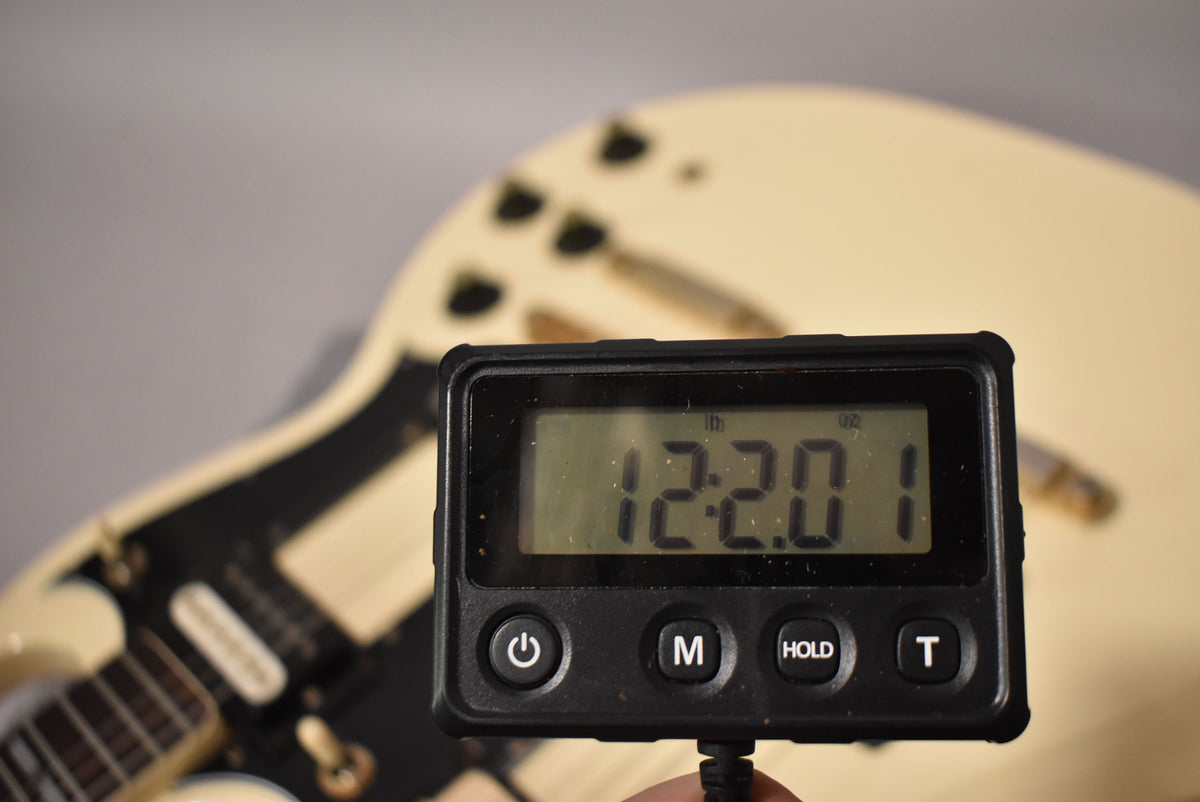

A digital scale displaying "12.20.1" obscures the white double-neck guitar's lower body and pickups.
32 / 32A digital scale displaying "12.20.1" obscures the white double-neck guitar's lower body and pickups.

Ibanez

1978 Ibanez 2402DX (2402WH) Double-Neck Fujigen Lawsuit MIJ White w/Gig Bag

$2,495.00

Available

  • Year1978
  • ConditionGood
  • StoreSherman Oaks
  • Casegig bag
Make an offer Sell one like this

Specifications

Instrument

Year
1978
Model
Ibanez 2402DX (2402WH) Double-Neck Fujigen Lawsuit MIJ White w/Gig Bag
Finish
White
Condition
Good
Made in
Japan
Store
Sherman Oaks

Measurements

Scale length (in)
24.75
Nut width (in)
1.72
Weight
12lbs

Construction

Body
Mahogany
Top
Birch
Neck joint
Bolt-on

Hardware & electronics

Pickups
Original Super 70 Pickups
Tuners
Changed Schaller Tuners (See Photos)

Case

Case
gig bag

Description

1978 Ibanez 2402DX/2402WH In White Finish

Finish Shows Notable Checking And Normal Cosmetic Play Wear Throughout, Including Various Small Dings, Marks And Scratches As Shown

Cracks Visible At Neck Pockets Are In Finish Only And Non-Structural

Extra Strap Buttons Holes Visible On Heel

Made In Japan At Fujigen Factory

Dual Bolt-On Laminate Mahogany Necks With Bound Rosewood Fingerboards And Split-Parallelogram Inlays

Gold Tune-O-Matic Style Bridges With Stop Tailpieces

Global Volume And Tone Controls With 3-Way Toggle Selector Switch

12-6 Strings Switch Selector / Pickup Switch Selector For Each Neck

Black Witch Hat Knobs

Neck Depth At 1st Fret (6-String): 0.81"

Neck Depth At 12th Fret (6-String): 0.99"

Neck Depth At 1st Fret (12-String): 0.83"

Neck Depth At 12th Fret (12-String): 1.00"

Comes As Shown With Newer Gig Bag

The 2402DX is a solid double neck electric guitar model introduced by Ibanez for 1974. It was made in Japan by FujiGen. It's visually similar to Gibson's EDS-1275 double neck model.

The 2402DX (also referred to as 2402WH) features a twelve string guitar neck and a six string guitar neck on mahogany body with figured birch top bolted to a pair of laminated mahogany necks with 20-fret rosewood fingerboards with pearloid parallelogram position markers white side dots and black open-book headstock. Both guitar necks have a pair of Ibanez Super 70 humbucking pickups, Tune-O-Matic style bridge and stop-bare tailpiece. Other components consist of witch hat control knobs, black pickguards and gold plated machine heads with pearloid buttons.
